Quad Lock 360 Arm - Dual Pivot
Quad Lock 360 Arm - Dual Pivot
Achieve leverage and optimal viewing with the Dual Pivot Arm.
Choose between a small (51mm / 2") or medium (75mm / 3") in length Dual Pivot Arm to suit your needs. Both arms are compatible with all Quad Lock 360 HEADS and BASES.
OPTIMAL VIEWING
Dual Pivot Arms can be rotated 360 degrees x 180 degrees. The two ball heads at either end also offer 180 degrees and 360 degrees movement for greater angle options.
EASY ADJUSTABILITY

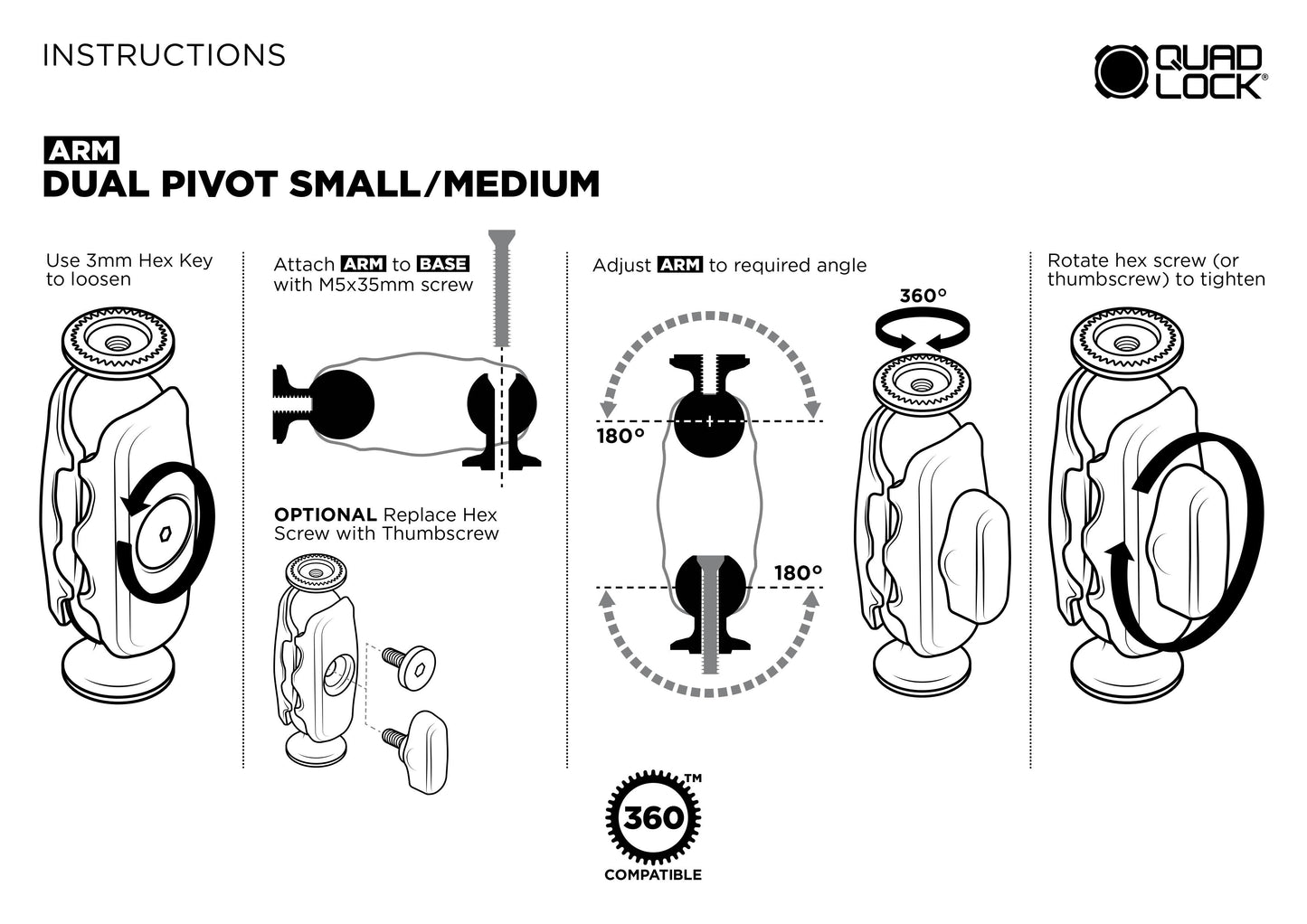

The Dual Pivot Arm comes with two options for easy adjustability:
Hex Screw for anti-theft protection
Thumb Screw for easy adjustment on the go
PRELOAD TENSION
Both adjustability options work with our preload tension so the arm doesn't disassemble when adjusting the angle. If needed, the arm can still be easily detached from the base connecting ball.
For more information visit:
Quad Lock 360 Arm - Dual Pivot - Quad Lock® Europe - Official Store (quadlockcase.eu)
Contact us for advice on your 360 application / configuration.
Guidelines
Guidelines
The Quad Lock 360 Dual Pivot Arms are compatible with all Quad Lock 360 Bases and Heads.
They are also compatible with the following Quad Lock mounts.
Motorcycle Handlebar Mount
Scooter/Motorcycle Mirror Mount
Tech Spec
Tech Spec
Arms made from tough, glass filled nylon
Designed with preload tension for easy adjustability
Two-sides of the Dual Pivot Arms features grooves to allow for tidy cable management

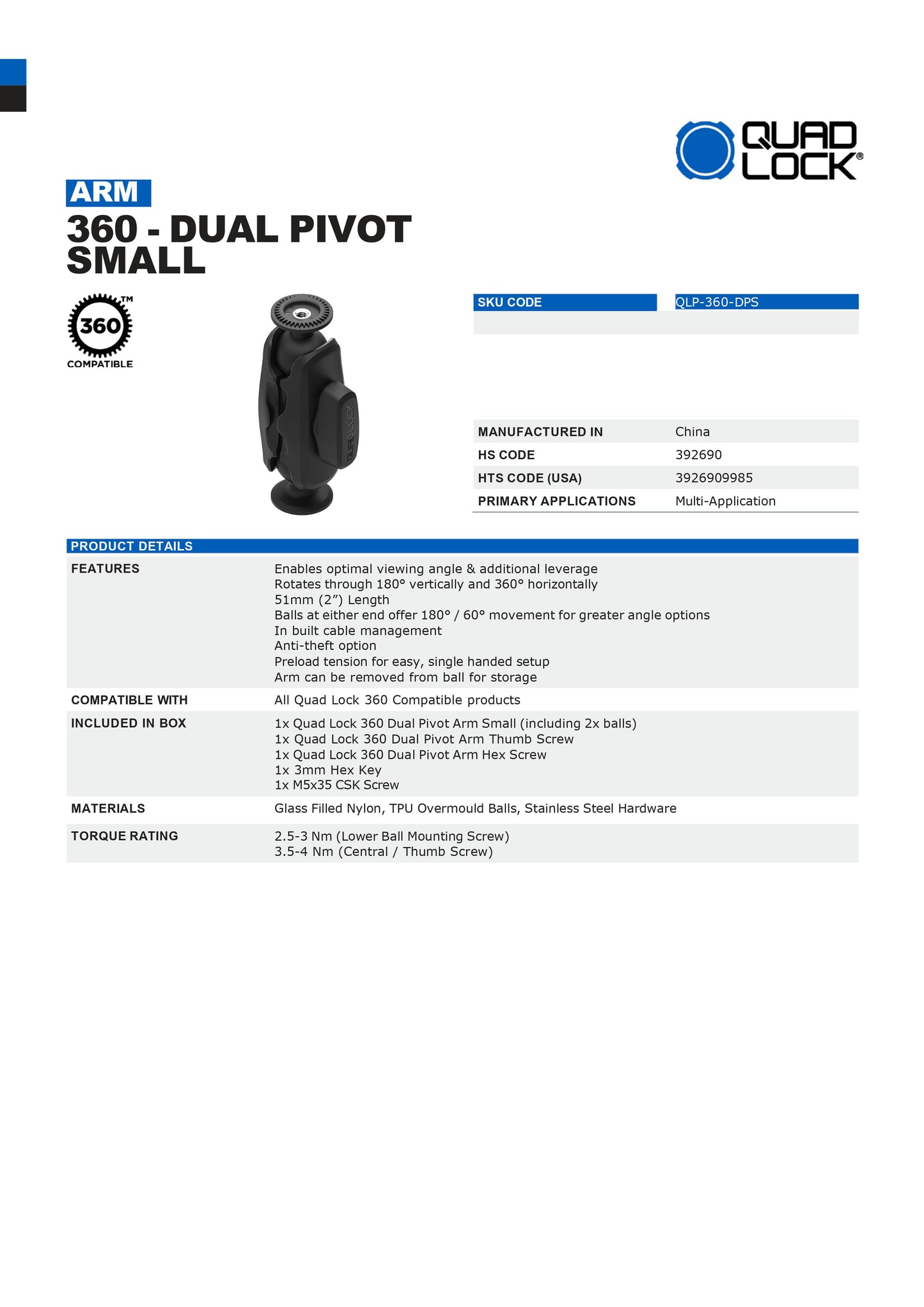

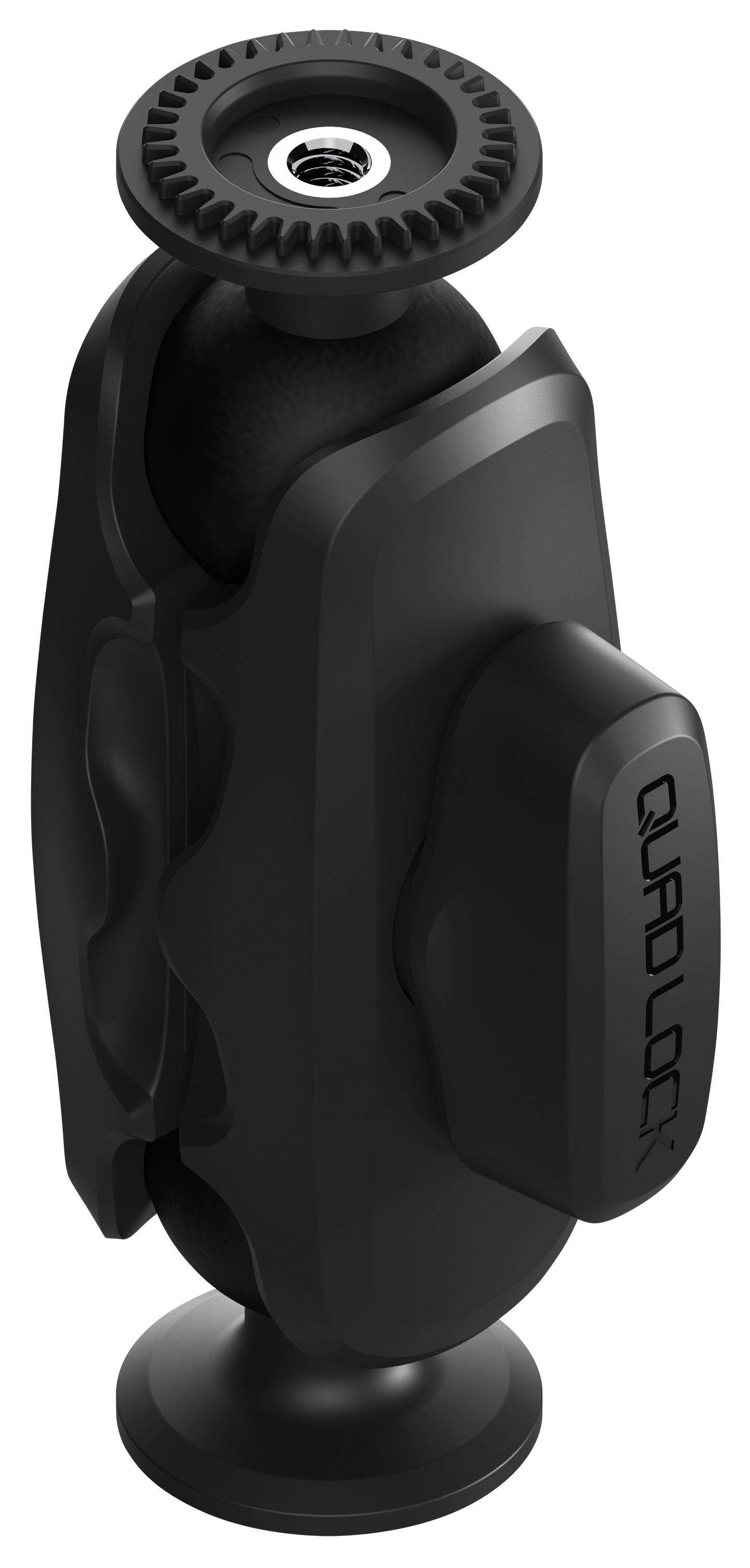

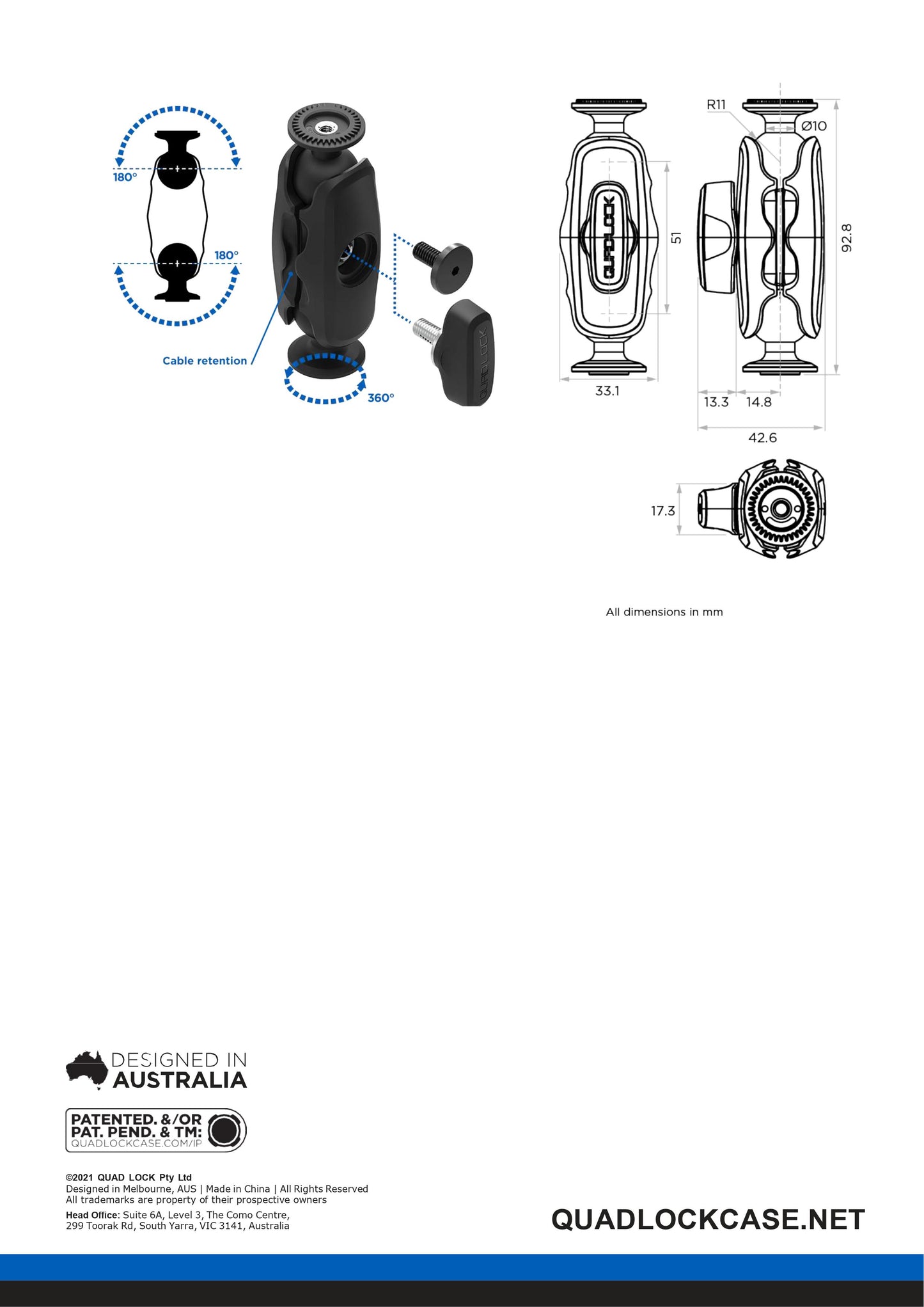

Small Arm: 51mm (2") pivot-to-pivot

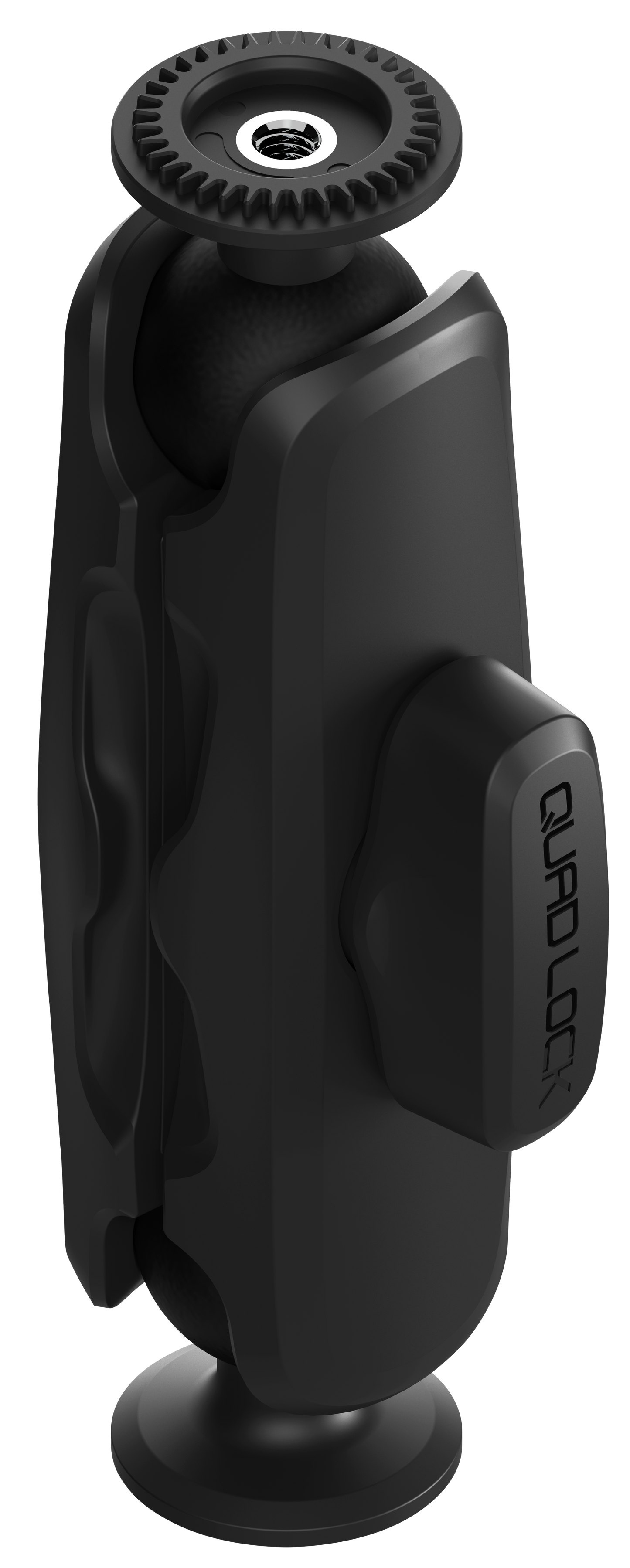

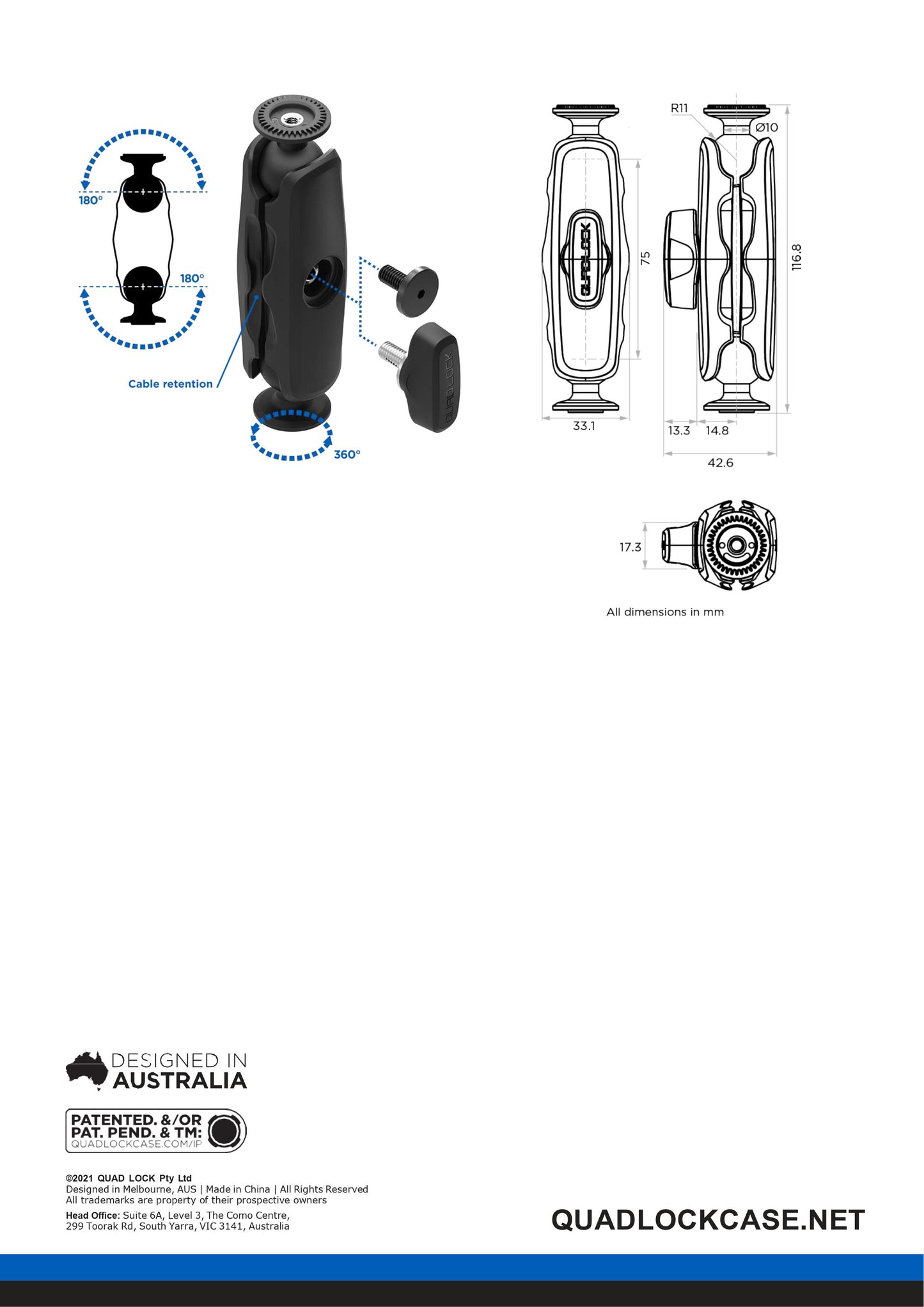

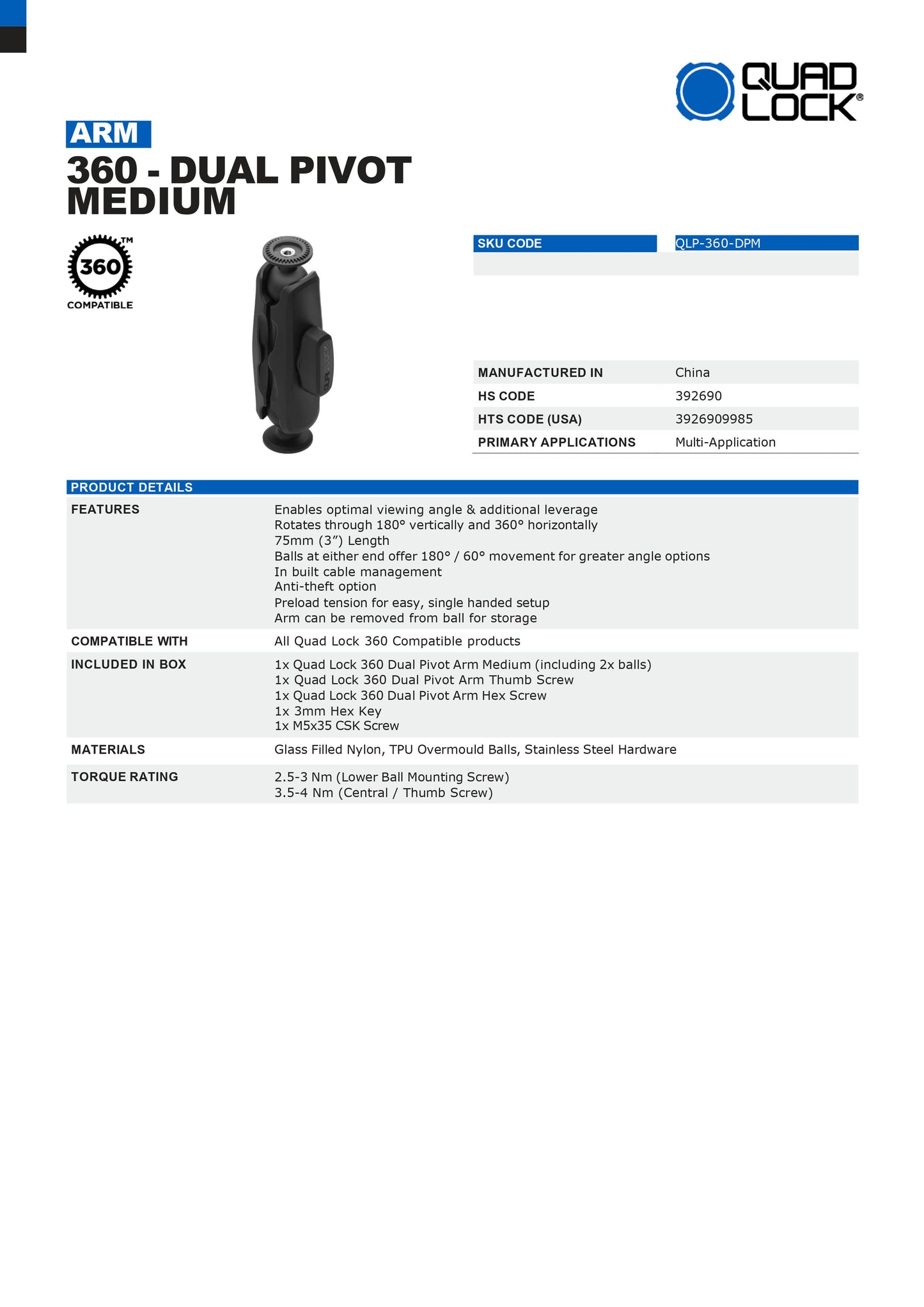

Medium Arm: 75mm (3") pivot-to-pivot
22mm (7/8") Balls
What's Included
What's Included
Each Dual Pivot Arm comes with:
1 x Dual Pivot Arm (51mm or 75mm) (2" or 3")
1 x Thumb Screw (to replace Hex Screw)
1 x 3mm Hex Key
