Quad Lock® Waterproof Wireless Charging Head - 12V-24V - V2
Quad Lock® Waterproof Wireless Charging Head - 12V-24V - V2
Include the 12V - 24V Waterproof Wireless Charging Head with your Quad Lock 360™ mount for secure waterproof wireless charging.
IP67 WATER RESISTANT
With a hardwired connection, the 12V - 24V Waterproof Wireless Charging Head is our highest rated water resistant wireless charger, and specifically designed for use in marine applications.
SECURE MOUNTING
The dual stage lock keeps your phone secure, even in the roughest conditions.
FAST WIRELESS CHARGING
With charging capabilities up to 15W, your phone battery will never run out.*
*Power output may vary depending on phone brand and model.
WIRELESS CHARGING HEAD COMPATIBILITY:
iPhone 15 Pro, 15 Pro Max, 15, 15 Plus, 14 Pro, 14 Pro Max, 14, 14 Plus, 13 Pro, 13 Pro Max, 13, 13 mini, SE (3rd Gen), 12 Pro, 12 Pro Max, 12, 12 mini, 11 Pro, 11 Pro Max, 11, SE (2nd Gen), X/Xs, Xs Max, XR, 8 Plus, 8
Samsung Galaxy S24 Ultra, S24+, S24, S23 FE, S23 Ultra, S23+, S23, S22 Ultra, S22+, S22, S21 FE, S21 Ultra, S21+, S21, Note20 Ultra, Note20, S20 FE, S20 Ultra, S20+, S20, Note10, Note10+, Note9, S10+, S10, S10e, S9+, S9, S8+ and S8
Google Pixel 8 Pro, 8, 8a, 7 Pro, 7, 7a, 6 Pro, 6, 5, 4, 4 XL, 3, 3 XL
Huawei P40 Pro and P30 Pro
The Quad Lock® 12V - 24V Waterproof Wireless Charging Head must be wired through ignition positive (not steady positive) or isolator switch with correct in-line 3A fuse and not directly to the battery to avoid battery drain. Recommended installation by a qualified professional.
For more information visit:
Quad Lock 360 Head - 12V-24V Waterproof Wireless Charging Head - Quad Lock® Europe - Official Store (quadlockcase.eu)
Contact us for advice on your 360 application / configuration.
Guidelines
Guidelines

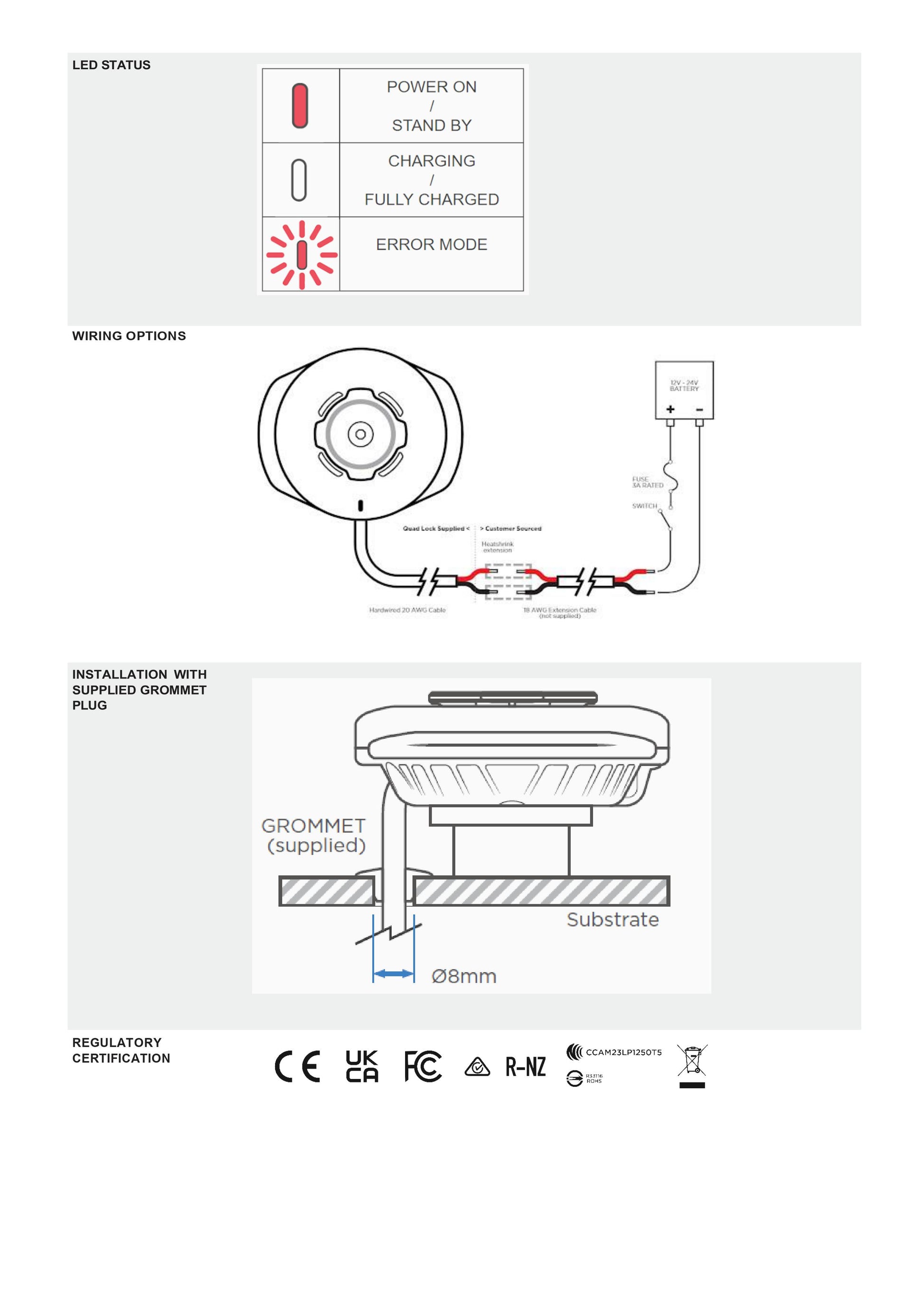

The Wireless Charging Heads come with an LED light to indicate the level of power your device is receiving. See diagram for further explanation.
12-24V weatherproof wireless charger head - LED status
Tech Spec
Tech Spec
12V-24V Waterproof Wireless Charging Head
Dual stage lock
Aluminium rear housing and tough glass filled nylon front
IP67 Water Resistant
1.5m hardwired cable with fly leads
Input: Hardwired to 12V or 24V battery
Output: 5W / 7.5W / 10W / 15W (iPhone up to 7.5W)
Red LED light for status indication
Portrait or landscape mounting for optimal viewing

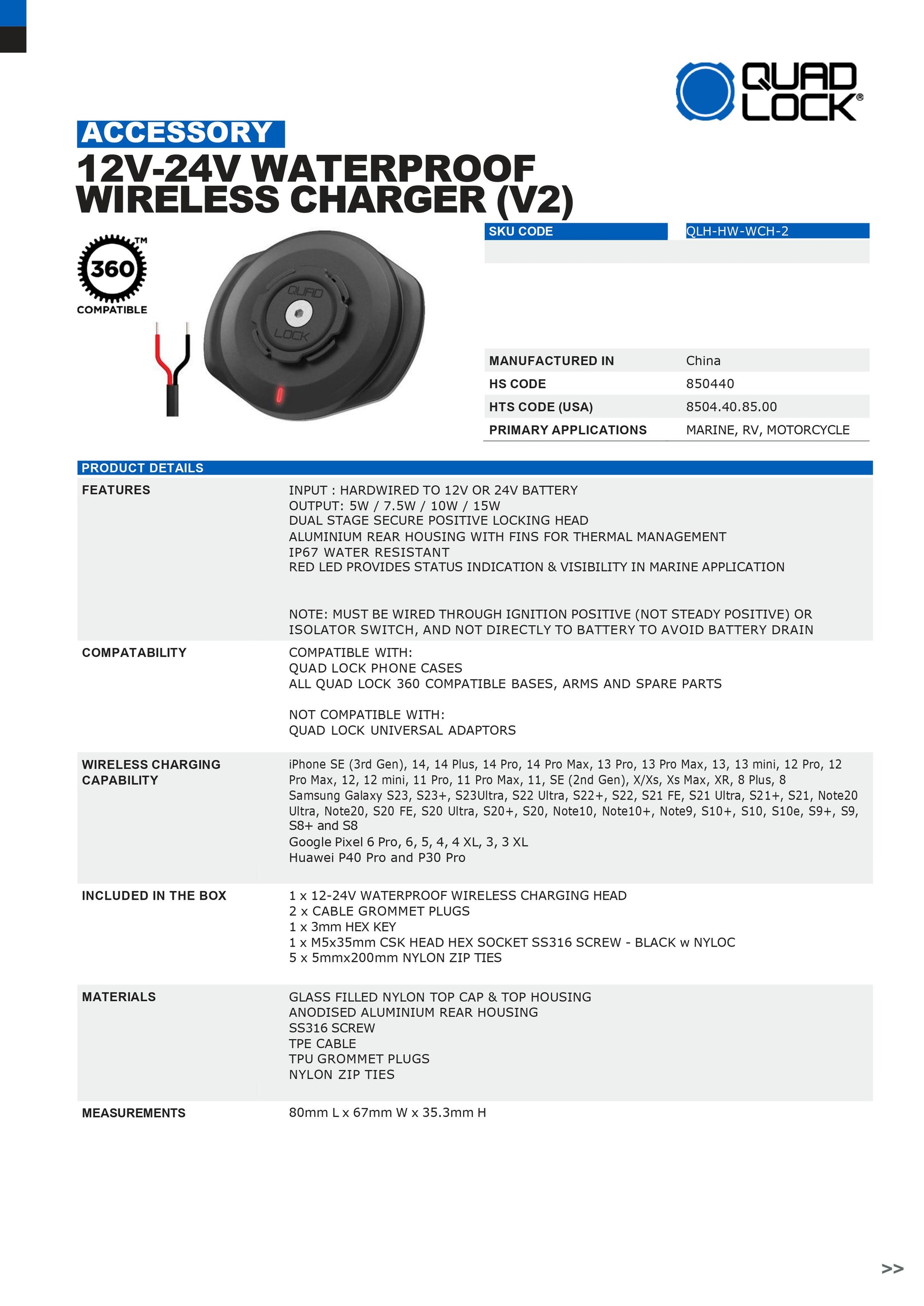

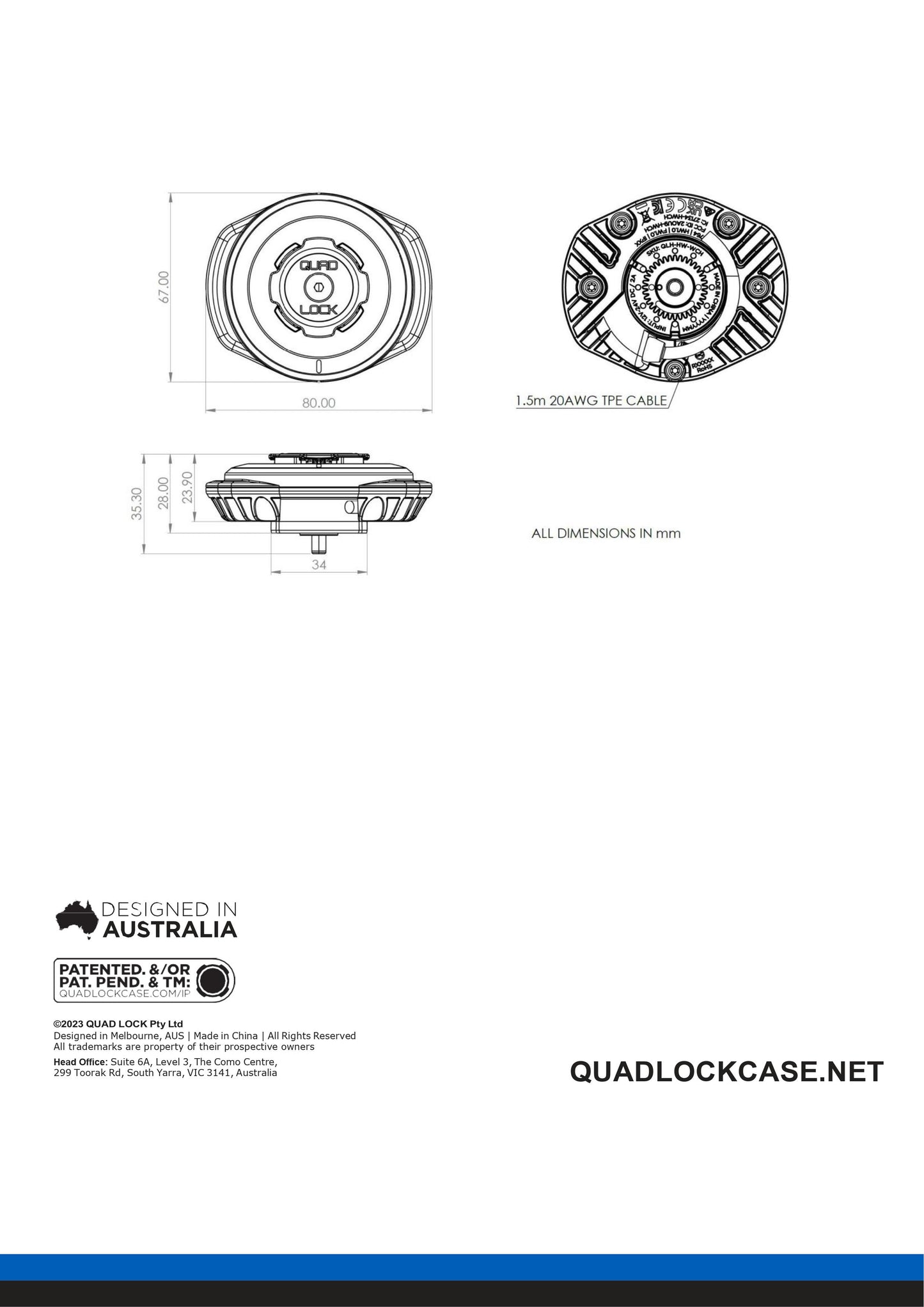

12V-24V Waterproof Wireless Charging Head Specs
The Quad Lock® 12V - 24V Waterproof Wireless Charging Head must be wired through ignition positive (not steady positive) or isolator switch with correct in-line 3A fuse and not directly to the battery to avoid battery drain. Recommended installation by a qualified professional.
What's Included
What's Included
12V-24V Waterproof Wireless Charging Head
1 x Quad Lock® 12V - 24V Waterproof Wireless Charging Head with 1.5m hardwired cable with fly leads
2 x Cable grommet plugs
1 x 3mm hex (Allen) key
1 x M5 x 35mm CSK hex socket screw
5 x 5mm x 200mm nylon zip ties
The Quad Lock® 12V - 24V Waterproof Wireless Charging Head must be wired through ignition positive (not steady positive) or isolator switch with correct in-line 3A fuse and not directly to the battery to avoid battery drain. Recommended installation by a qualified professional.
