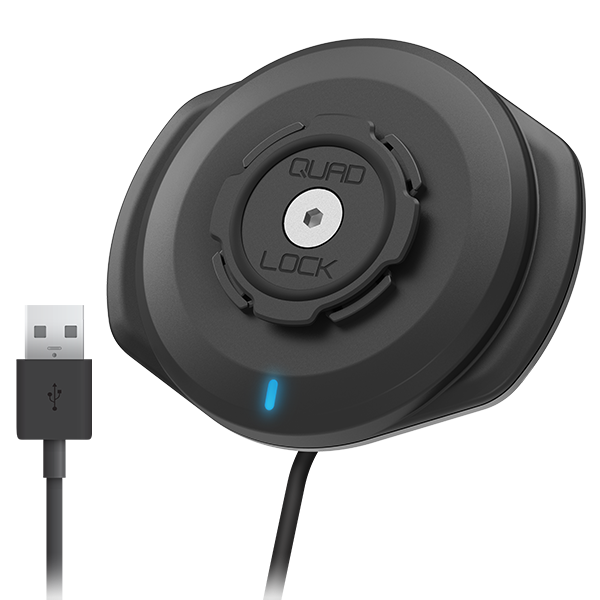

Quad Lock® USB Weatherproof Wireless Charging Head
Quad Lock® USB Weatherproof Wireless Charging Head
Include the Quad Lock® Weatherproof Wireless Charging Head with your Quad Lock 360™ mount to wirelessly charge your compatible smartphone.
FAST CHARGING CAPABILITY
Easily use GPS navigation without draining your smartphone's battery. The Weatherproof Wireless Charging Head supports fast charging when coupled with adequate power supply. We recommend the Waterproof 12V to USB Smart Adaptor to connect to your battery's SAE connector or battery terminals if you do not have a USB port.
Please Note:
*Power supply requirements may vary depending on phone brand and model
SECURE MOUNTING
The dual stage lock keeps your phone secure, whatever your activity.
IP66 WATER RESISTANT
Rain happens. So the Quad Lock® Weatherproof Wireless Charging Head is IP66 Water Resistant for use in the wet.
WIRELESS CHARGING HEAD COMPATIBILITY:
iPhone 15 Pro, 15 Pro Max, 15, 15 Plus, 14 Pro, 14 Pro Max, 14, 14 Plus, 13 Pro, 13 Pro Max, 13, 13 mini, SE (3rd Gen), 12 Pro, 12 Pro Max, 12, 12 mini, 11 Pro, 11 Pro Max, 11, SE (2nd Gen), X/Xs, Xs Max, XR, 8 Plus, 8
Samsung Galaxy S24 Ultra, S24+, S24, S23 FE, S23 Ultra, S23+, S23, S22 Ultra, S22+, S22, S21 FE, S21 Ultra, S21+, S21, Note20 Ultra, Note20, S20 FE, S20 Ultra, S20+, S20, Note10, Note10+, Note9, S10+, S10, S10e, S9+, S9, S8+ and S8
Google Pixel 8 Pro, 8, 8a, 7 Pro, 7, 7a, 6 Pro, 6, 5, 4, 4 XL, 3, 3 XL
Huawei P40 Pro and P30 Pro
The Wireless Charging Head is not compatible with the Universal Adaptor
Compatible with all Quad Lock 360 ARMS and BASES.
For more information visit:
Contact us for advice on your 360 application / configuration.
Guidelines
Guidelines

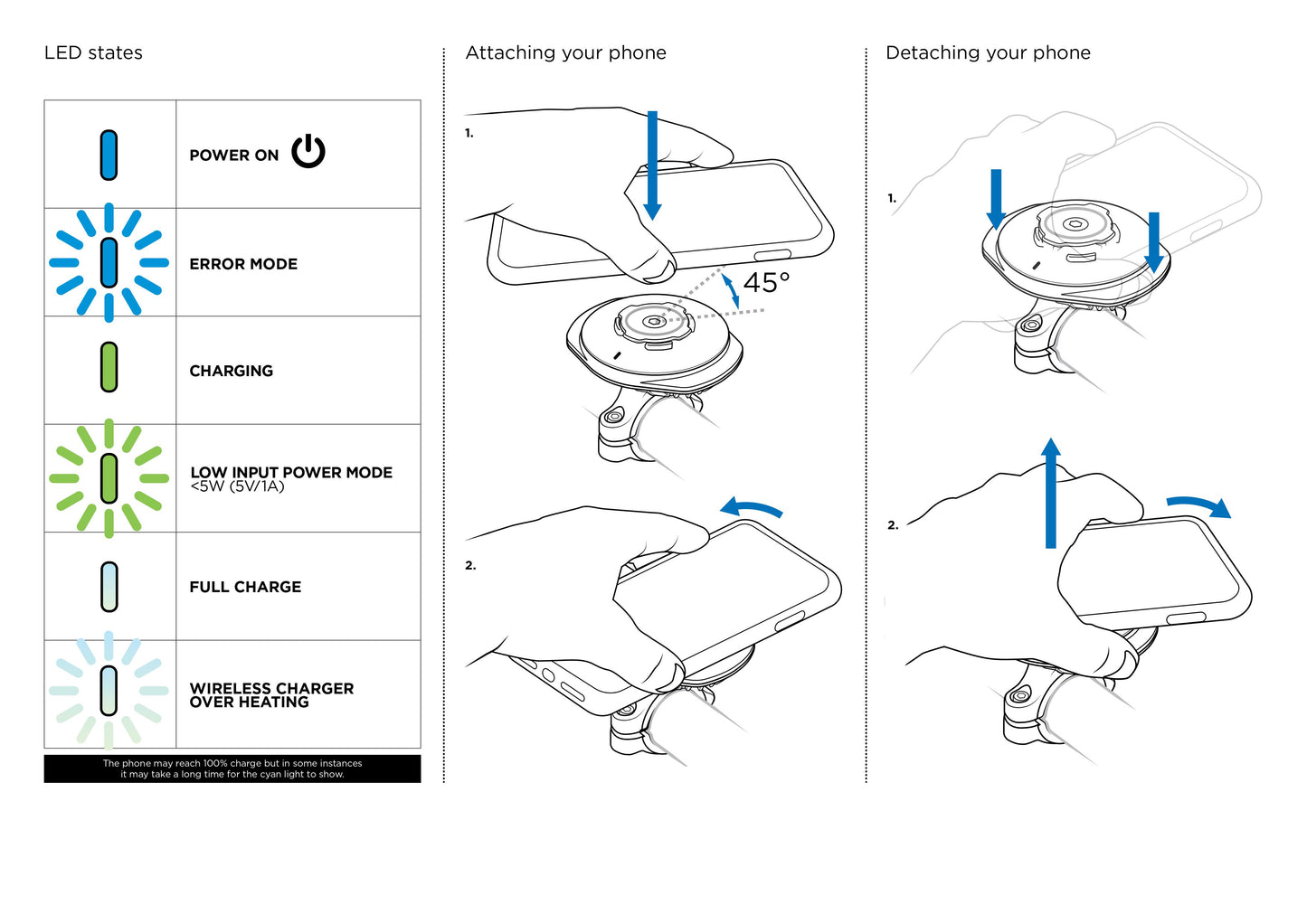

The Weatherproof Wireless Charging Head comes with an LED light to indicate the level of power your device is receiving. See diagram for further explanation.

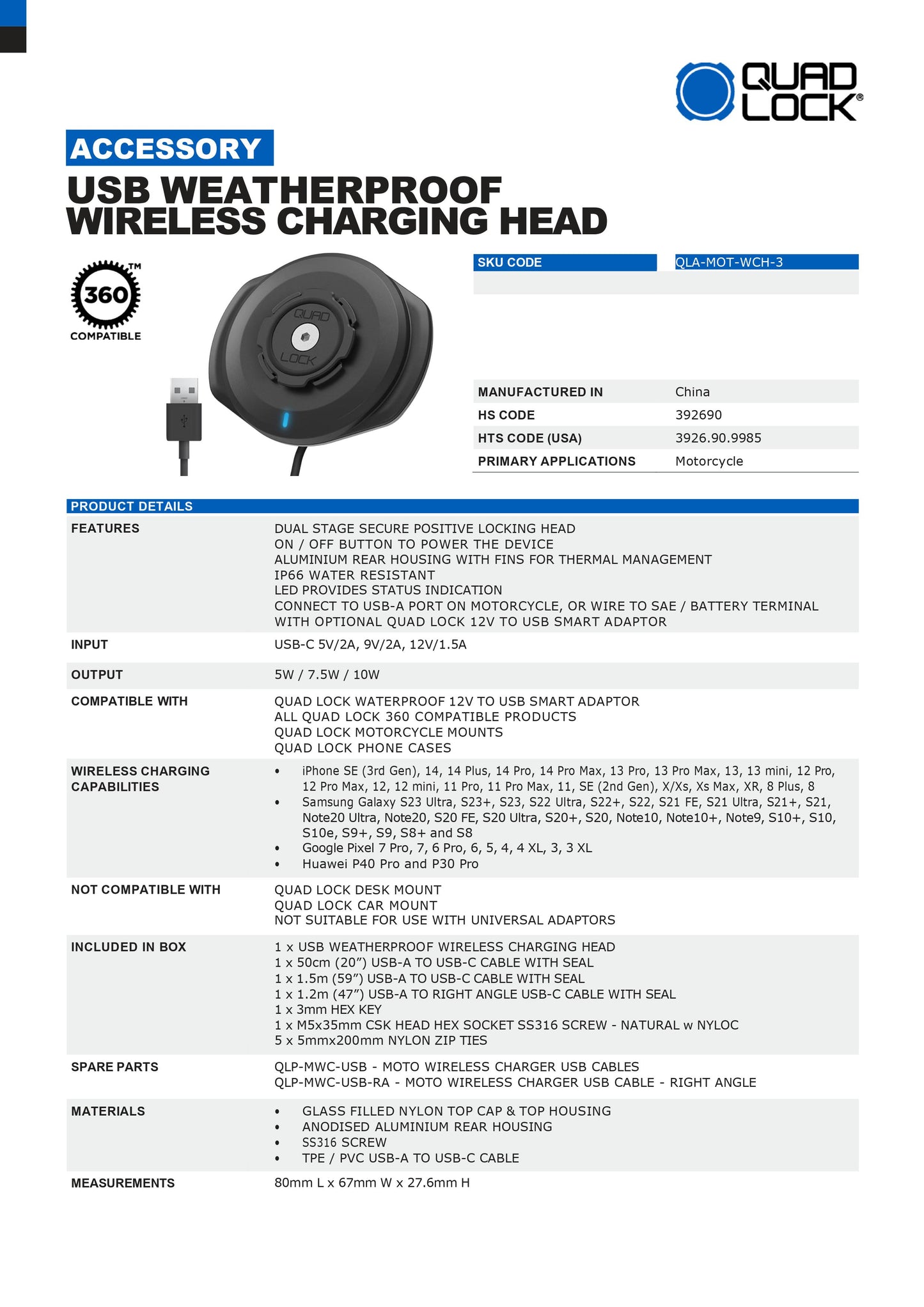

Tech Spec
Tech Spec
USB Weatherproof Wireless Charging Head
Dual stage lock
Built from a combination of die cast aluminium and reinforced plastics
5W, 7.5W & 10W charging (iPhone up to 7.5W)
IP66 Water Resistant
Minimum recommended input from 5V/2A USB-A port
LED light for status indication
Portrait or Landscape mounting for optimal viewing
Aluminium rear housing to dissipate heat
CE/FCC certified
On/Off button to power device

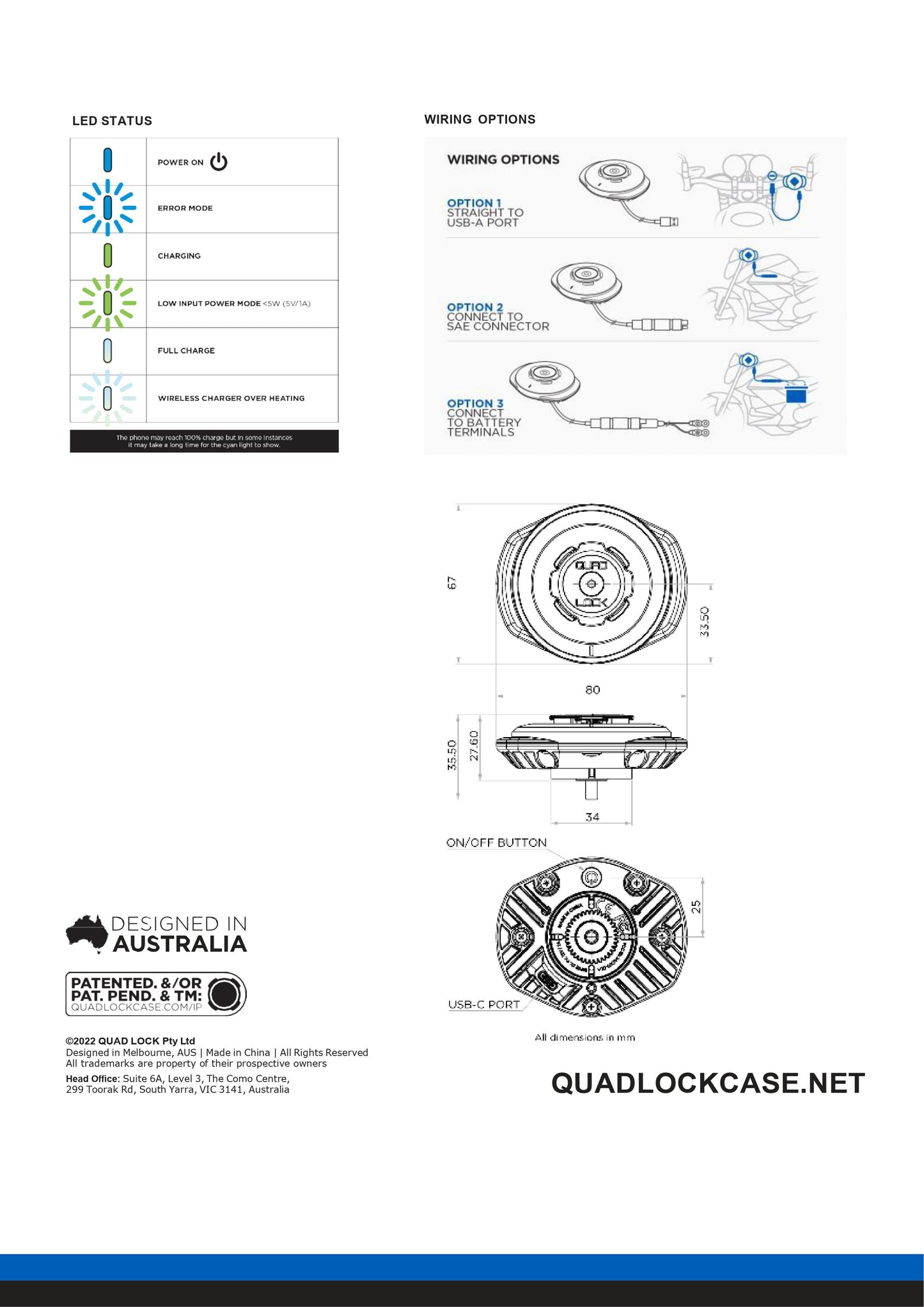

USB Weatherproof Wireless Charging Head Specs

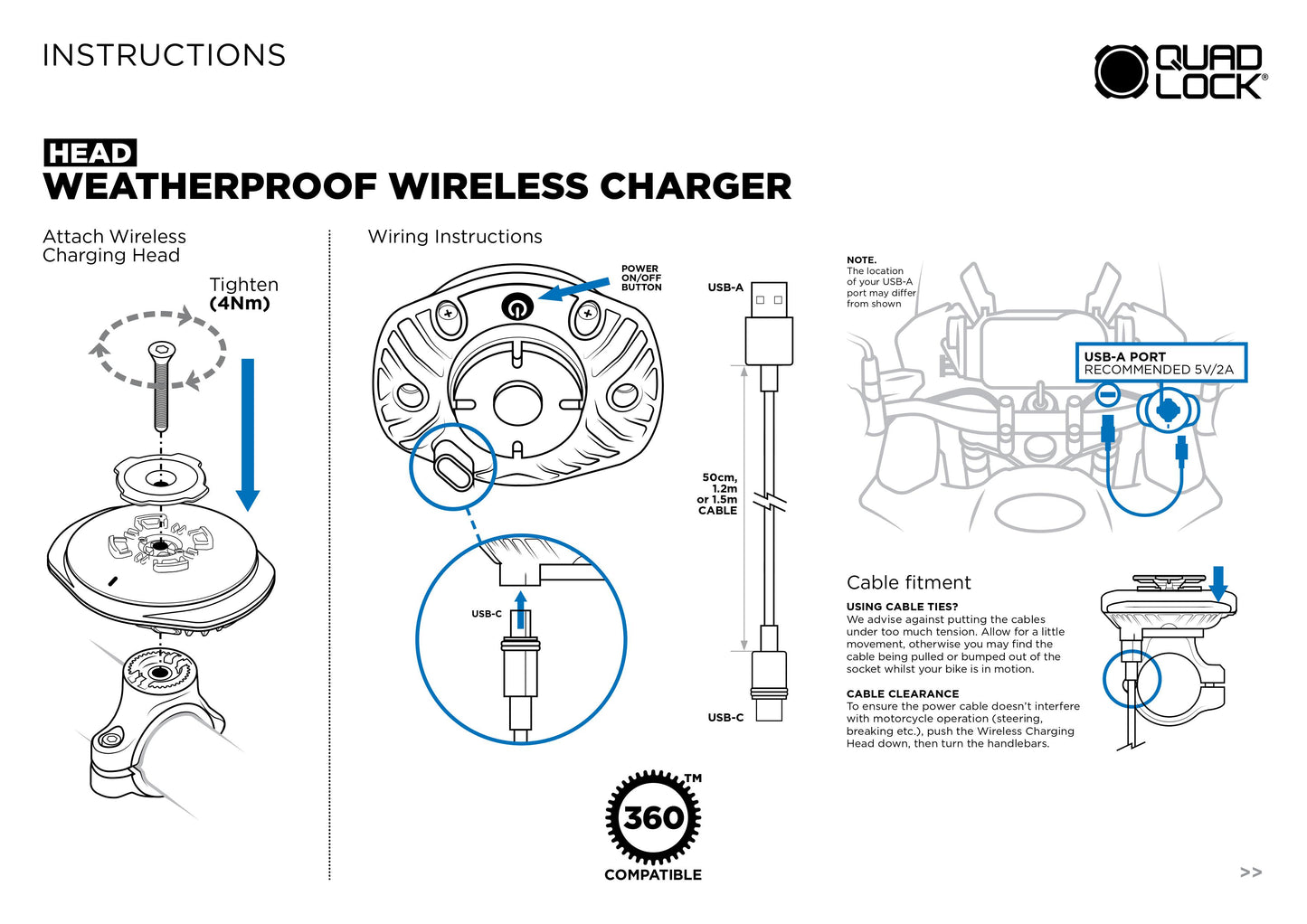

The Quad Lock® USB Weatherproof Wireless Charging Head includes USB-A to USB-C cables to charge directly from your motorcycles's USB power source if available. For motorcycles without a USB power source, the Quad Lock® Weatherproof 12V to USB Smart Adaptor connects to your bike's battery or existing SAE connector, providing a simple power source solution (sold separately).
Apple devices charge wirelessly at a maximum of 7.5W.
Galaxy devices (newer than S7 and Note10) charge wirelessly at a maximum of 10W.
Pixel devices (newer than Pixel 5) charge wirelessly at a maximum of 15W.
What's Included
What's Included
USB Weatherproof Wireless Charging Head
1 x Quad Lock® Weatherproof Wireless Charging Head
1 x 50cm (20") USB-C to USB A Cable
1 x 1.5m (59") USB-C to USB-A Cable
1 x 1.2m (47") Right-Angle USB-C to USB-A Cable
1 x 3mm Hex Key
1 x M5x35 CSK Screw
5 x Nylon Zip Ties
