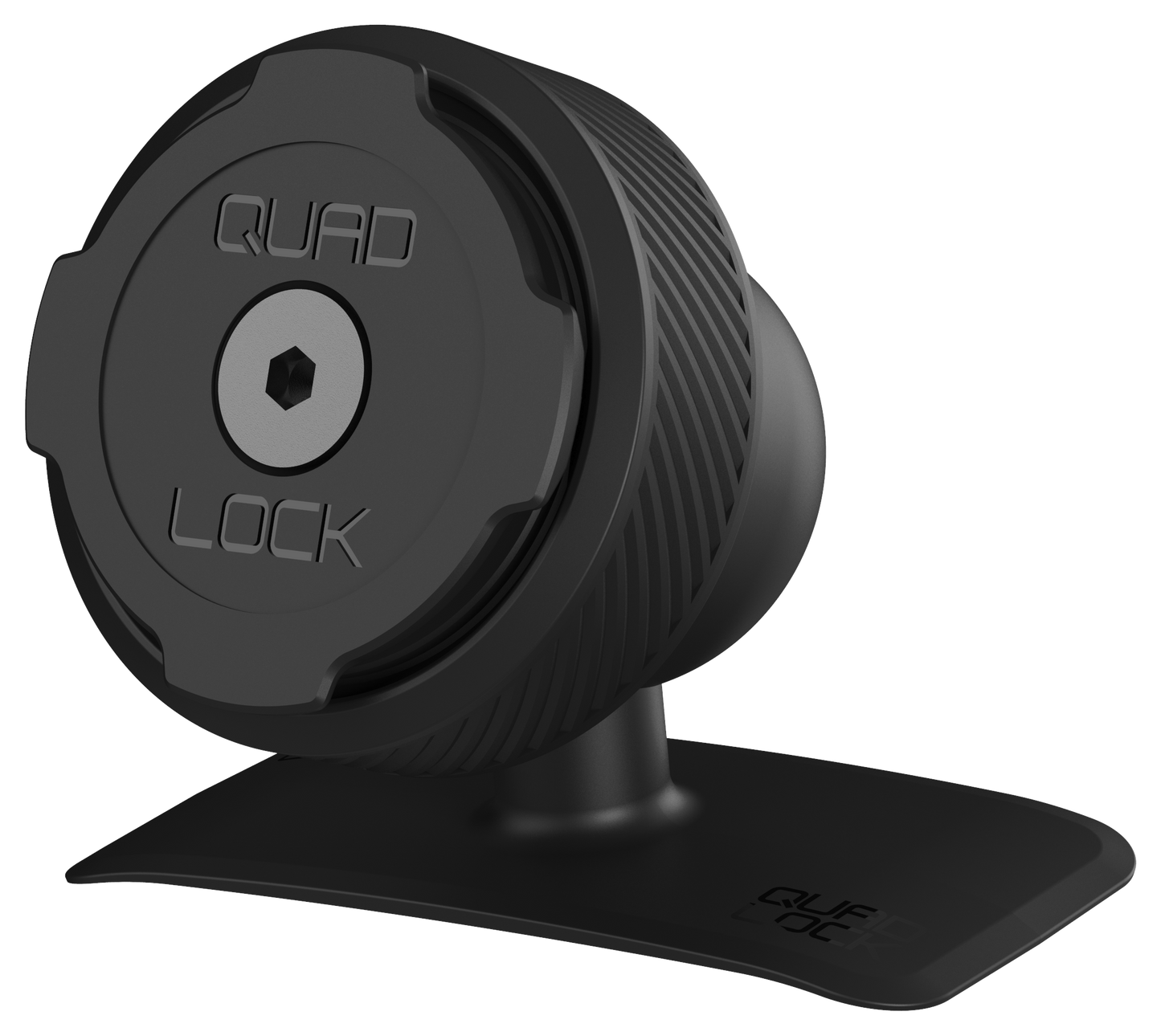

Car - Adhesive Dash/Console Mount
Car - Adhesive Dash/Console Mount
Suitable for use with all Quad Lock® Cases and Universal Adaptors, the Quad Lock® Adhesive Dash / Console Car Mount offers a versatile mounting solution with its slimline adhesive base and pivot head.
SECURE MOUNTING
With 3M VHB adhesive and a flexible base, the Dash / Console mount can adhere to flat and slightly curved surfaces. See our recommended surface guidelines for more information to choose the correct surface and mounting angle.
ADJUSTABLE VIEWING ANGLE
The single pivot ball joint allows for 180º head articulation in the Z axis and 360º rotation around the base. Mounting your phone in the optimal viewing position is simple.
SLEEK DESIGN
Slim profile base and black hardware will cleanly integrate with your car's interior.
MAG AND WIRELESS CHARGING (OPTIONAL)
Upgrade your mount with one of our two Quad Lock MAG™ Heads and make mounting your phone even easier.
Add the Quad Lock MAG™ Wireless Charging Head or Quad Lock® Wireless Charging Head and always keep your phone battery in the green, no matter the adventure.
Quad Lock MAG™ Heads require use of a Quad Lock MAG™ Case or MAG Universal Adaptor.
Wireless Charging Heads purchased before July 2022 not compatible with Adhesive Dash/Console Mount and Vent Mount.
For more information visit:
https://www.quadlockcase.eu/collections/shop-mounts/products/adhesive-dash-console-car-mount

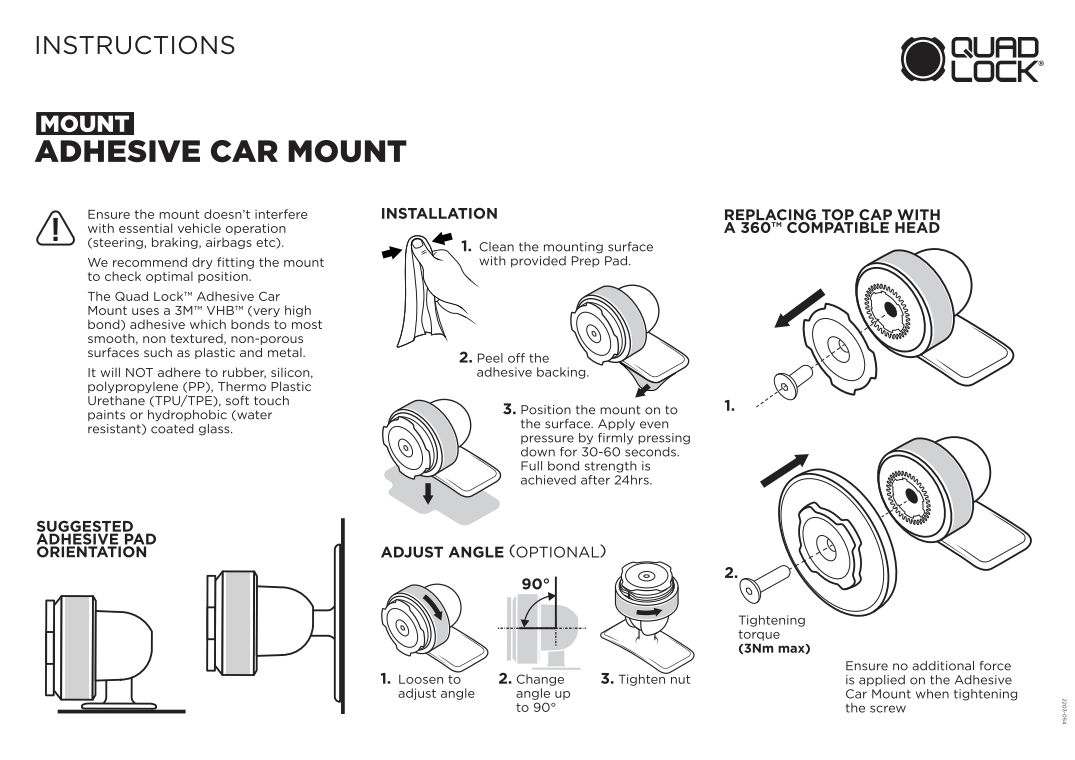

Guidelines
Guidelines
The Quad Lock® Adhesive Dash/Console Mount uses a 3M™ VHB 5611 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:
Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. car dash or console)
Un-coated glass (eg windshield)
Metals
Fibreglass
The adhesive will not bond to the following substrates:
Rubber, TPU, TPE
Leather
Silicone
Soft touch coating or paint
Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
Application temperature:
Ideal application temperature is between 21ºC (70ºF) to 38ºC (100ºF)
It is not recommended to adhere the mount in temperatures below 10ºC (50ºF)
Please ensure the substrate is thoroughly cleaned and dry before applying the Dash/Console Mount.
The 3M™ VHB™ is a single use adhesive and is not reusable.
The Dash/Console Mount is not recommended for use on motorcycles, scooters, ATVs, or other high frequency engine vibrations applications.

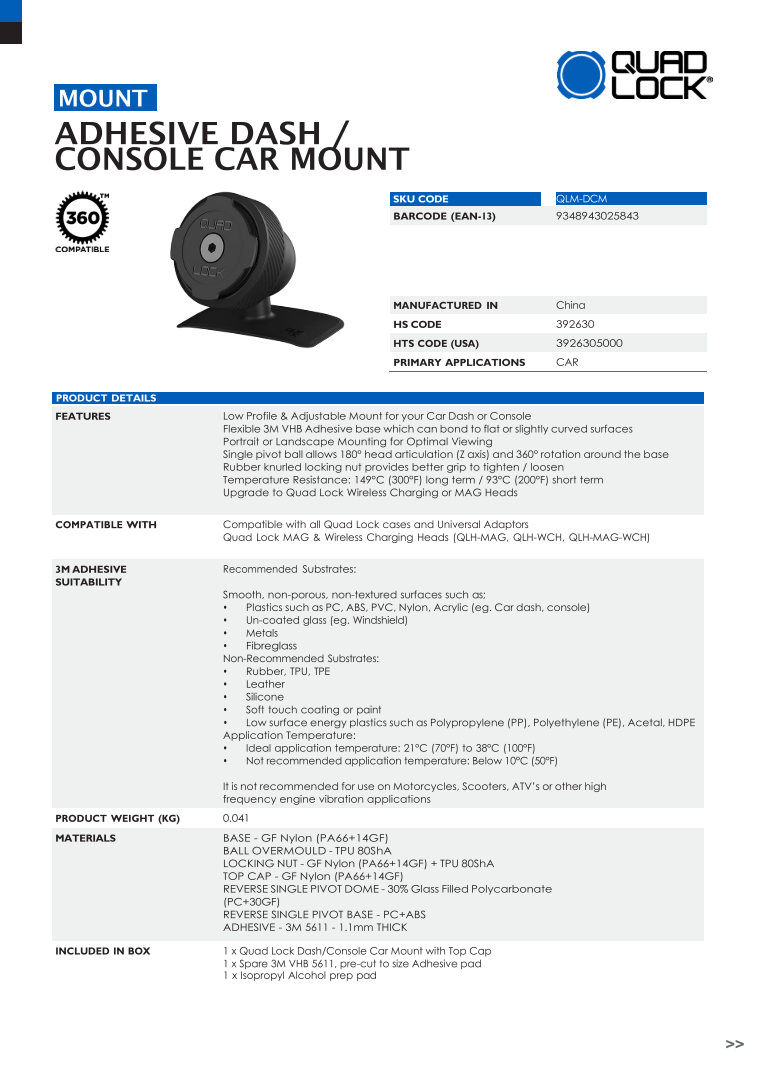

Tech Spec
Tech Spec
ADHESIVE DASH/CONSOLE MOUNT
Glass filled nylon
TPU ball overmold
3M VHB Adhesive
Compatible with all Quad Lock® Cases and Universal
Adaptors
Compatible with Quad Lock® Wireless Charging Head purchased after July 2022
Compatible with all Quad Lock MAG™ Heads
Remove used adhesive pad and replace with a new one to easily reposition the mount. Purchase replacement adhesive pads here
What's Included
What's Included
1 x Quad Lock® Adhesive Dash/Console Car Mount
1 x Quad Lock 360™ Top Cap
1 x Spare 3M VHB Adhesive Pad
1 x Alcohol wipe
