Quad Lock® 360 Base - Concealed

N$550.00 NAD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Secure your mount using the Quad Lock 360™ Concealed Small Bases.

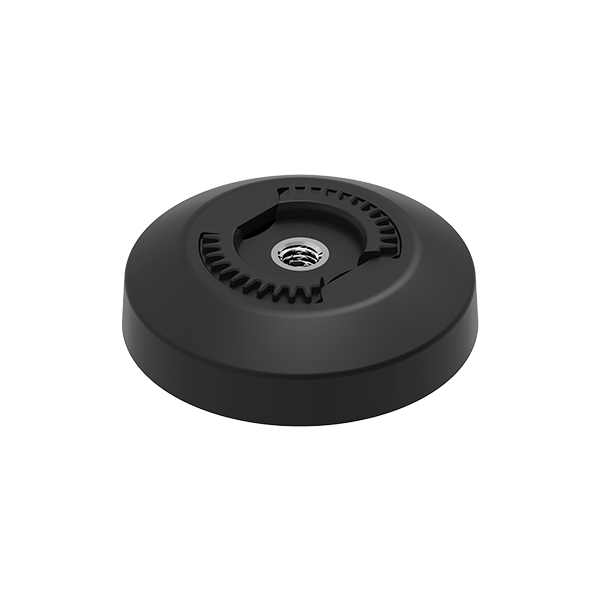

CONCEALED

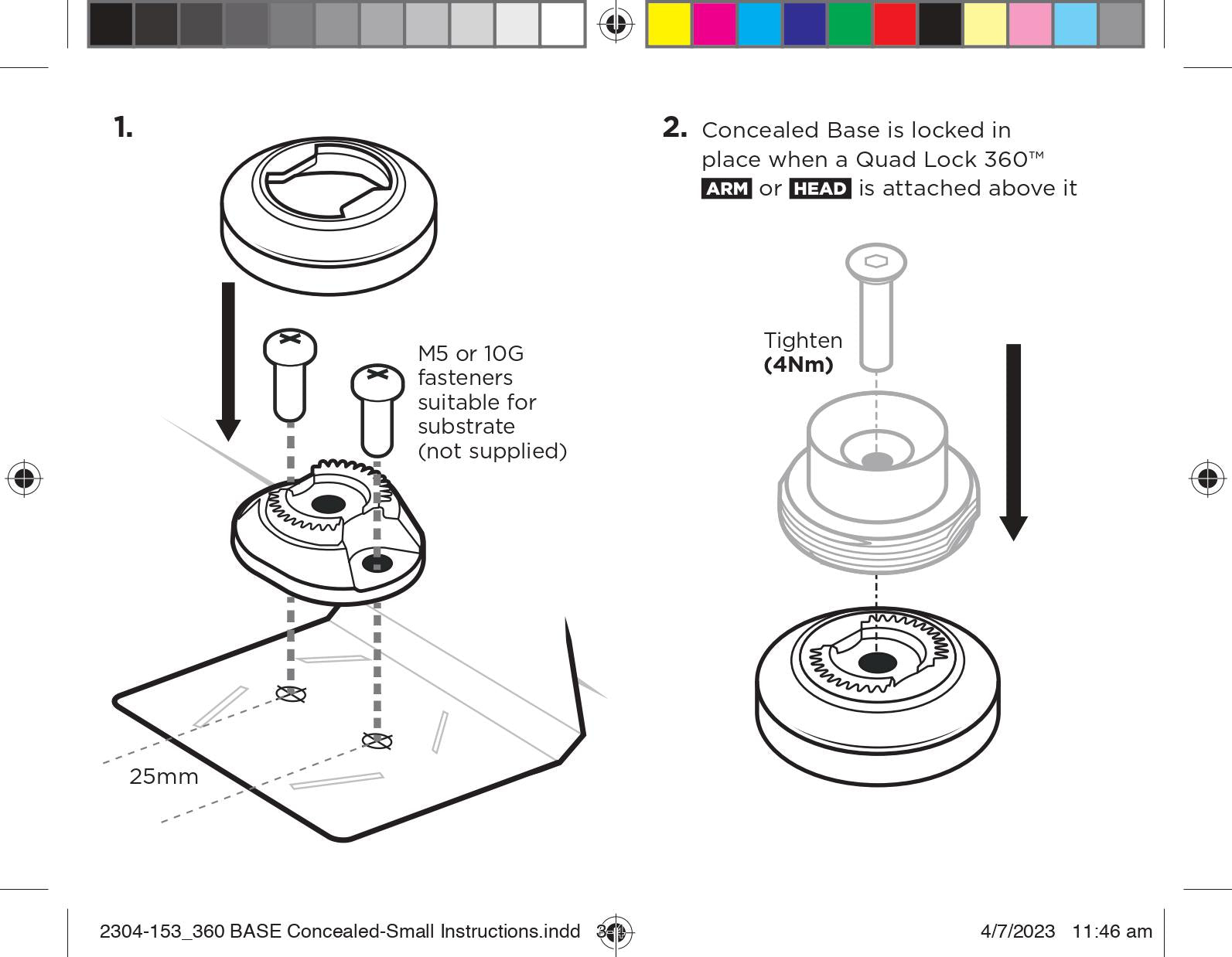

Two hole mounting pattern with small footprint and a cover to conceal the mounting screws and give a clean look. Once a Quad Lock 360™ Arm or Head is mounted on top the glamour cover is secured into place.

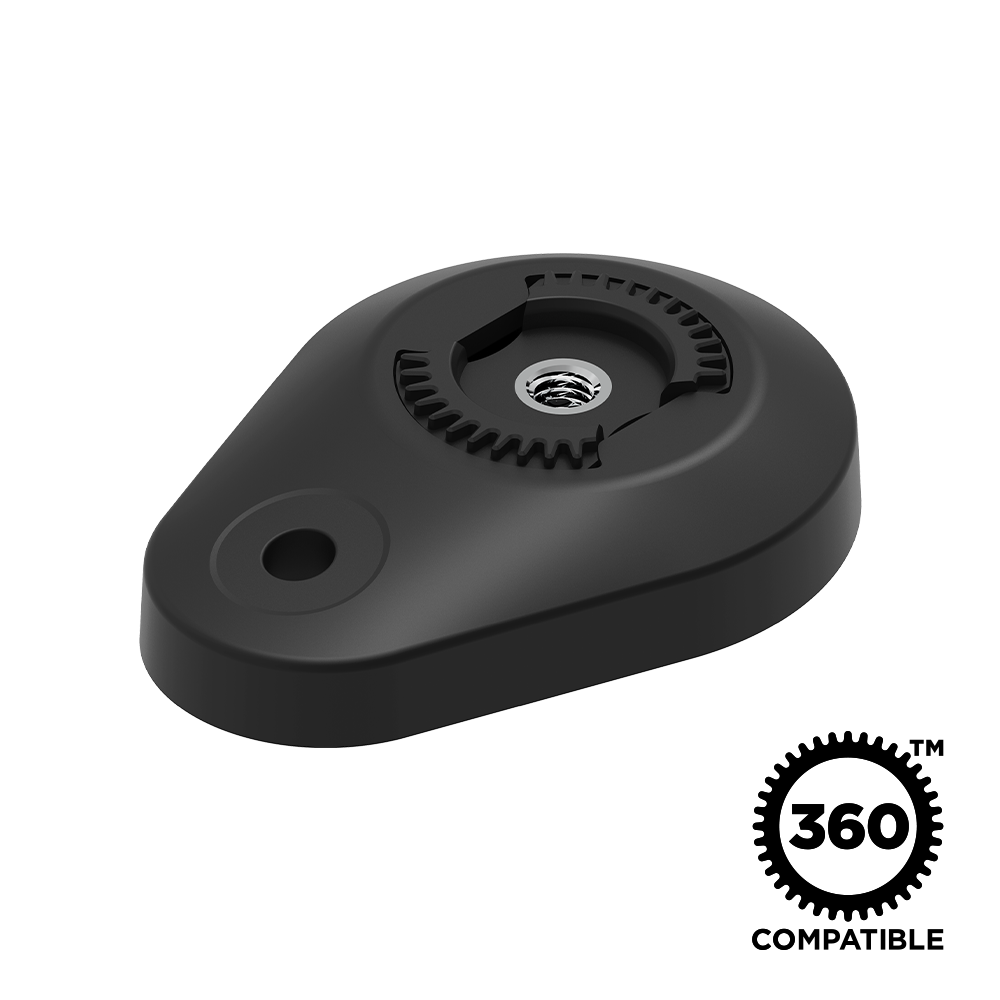

CONCEALED THROUGH CABLE

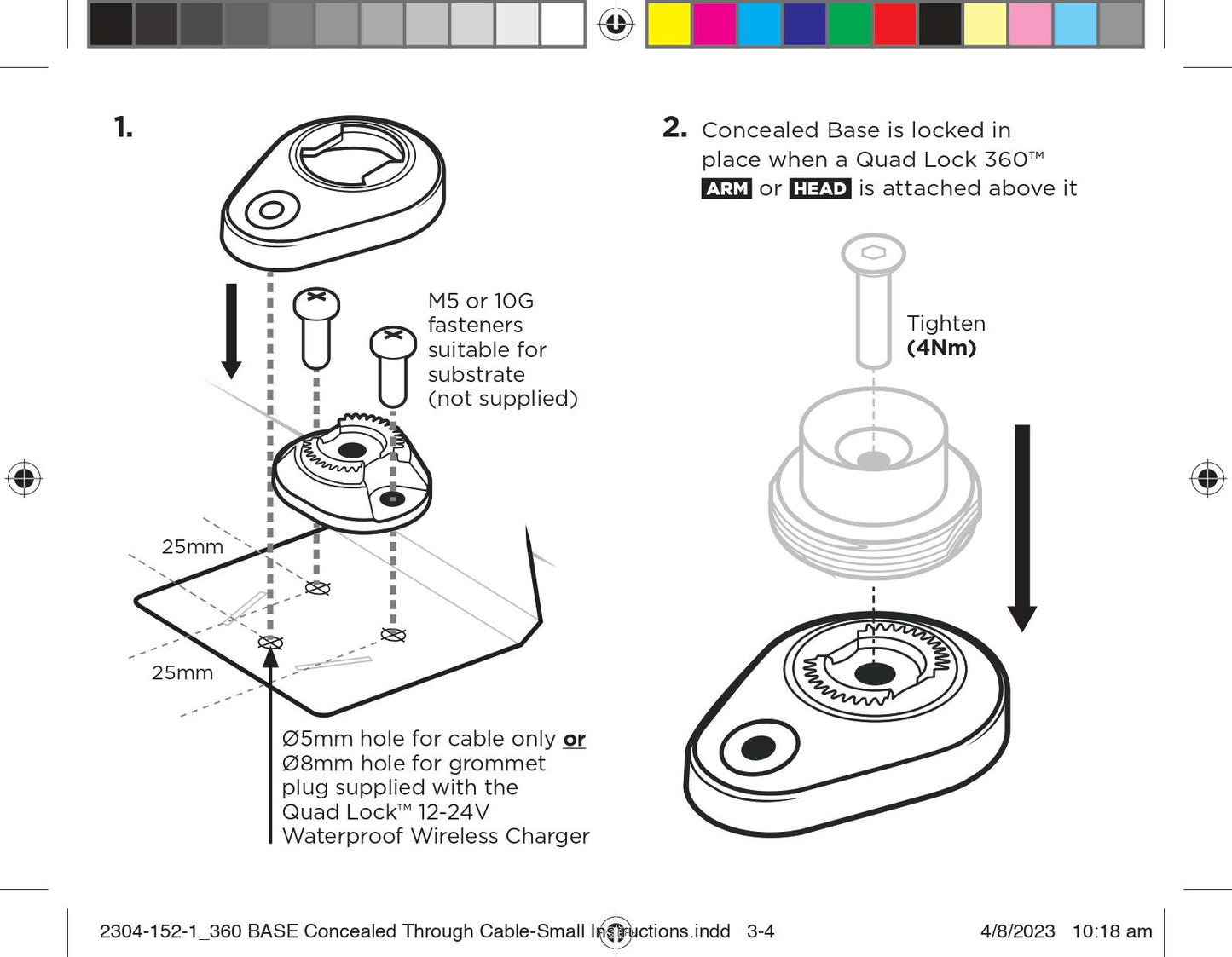

Two hole mounting pattern with small footprint, a cover to conceal the mounting screws for a clean look, and passthrough for the Quad Lock® 12V-24V Waterproof Wireless Charging Head cable.

Once a Quad Lock 360™ Arm or Head is mounted on top the glamour cover is secured into place.

For more information visit:

Quad Lock 360 Base - Concealed Small - Quad Lock® Europe - Official Store (quadlockcase.eu)

Guidelines

Tech Spec

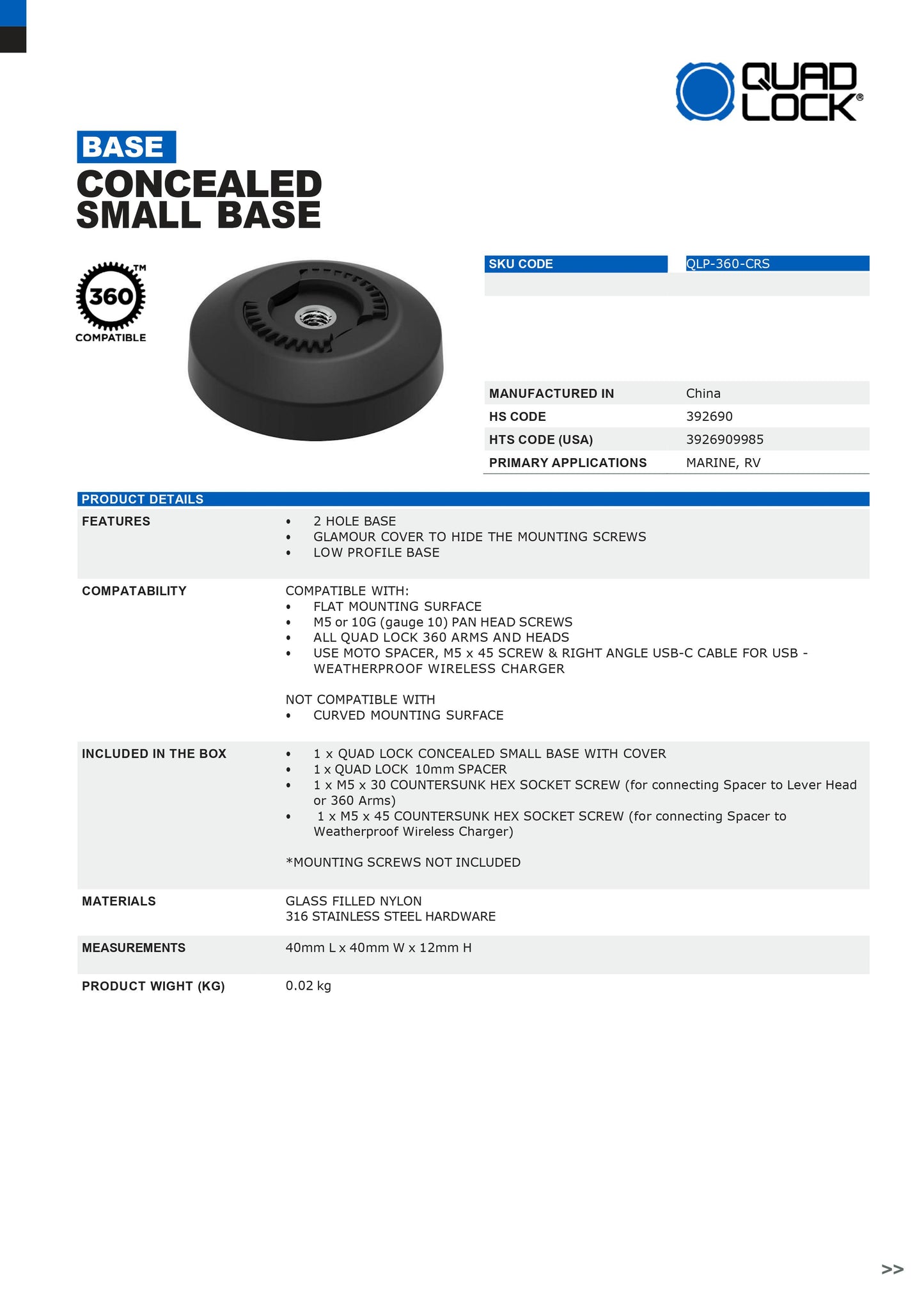

CONCEALED
Tough glass filled nylon
Stainless steel hardware
Glamour cover to hide the screws
Suits flat surfaces only
25mm (15/16") hole pitch
M5 or 10G (gauge 10) pan head screws

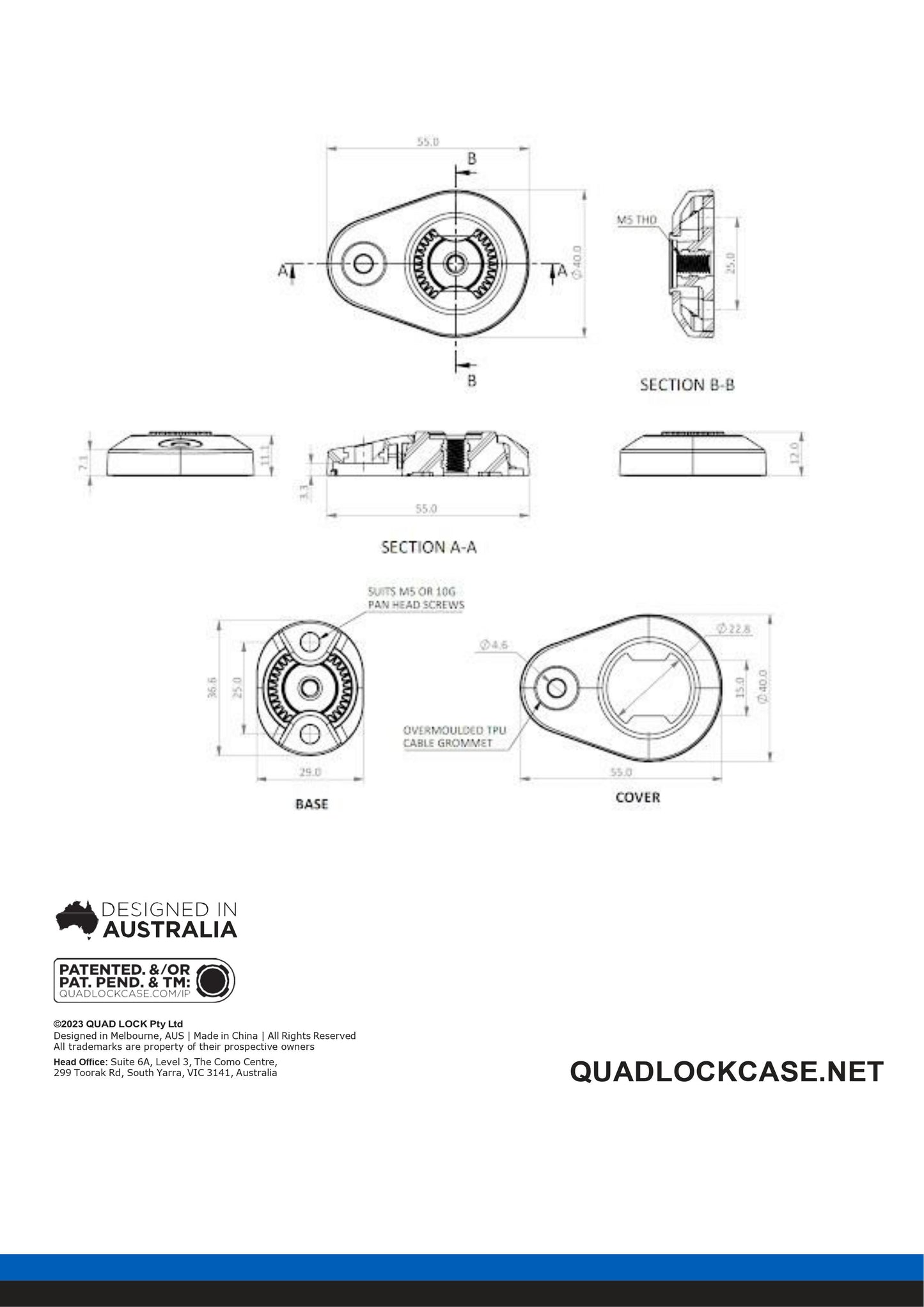

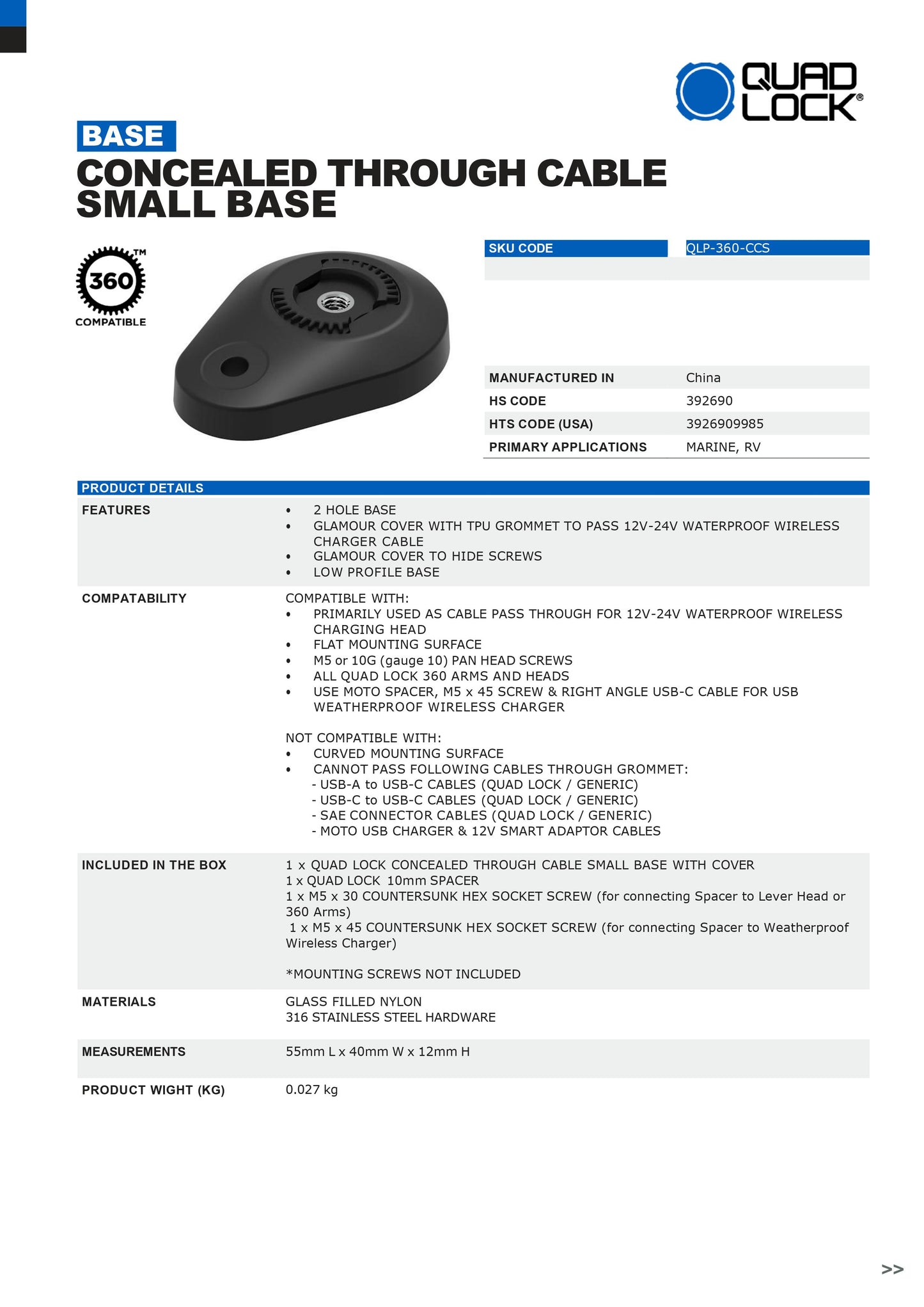

CONCEALED THROUGH CABLE
Tough glass filled nylon
Stainless steel hardware
Glamour cover to hide the screws
Suits flat surfaces only
25mm (15/16") hole pitch
M5 or 10G (gauge 10) pan head screws

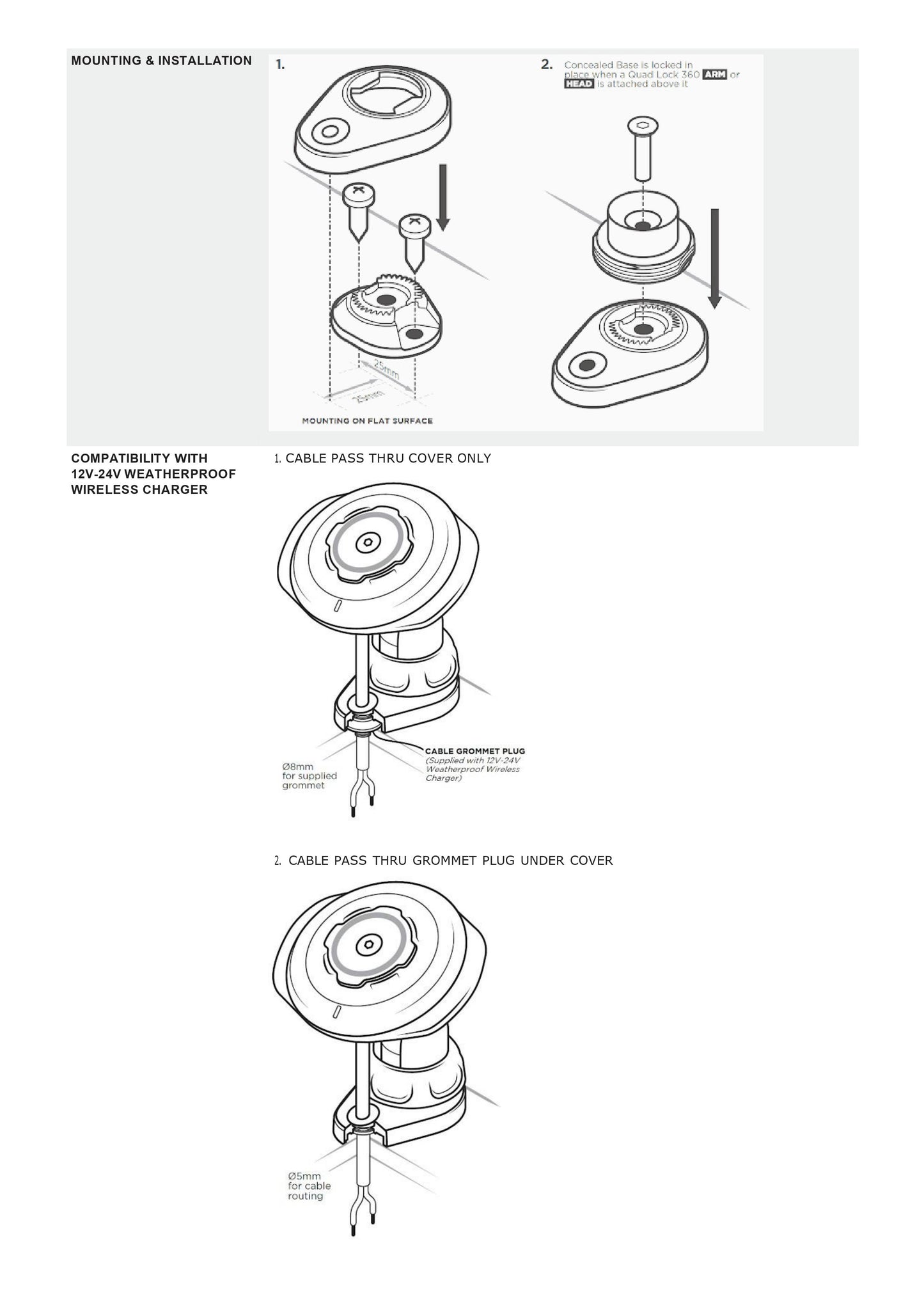

Grommet compatible with Quad Lock® 12V - 24V Waterproof Wireless Charging Head cable
Grommet not compatible with the following cables: USB-A to USB-C cables, USB-C to USB-C cables, SAE connector cables, Quad Lock® Motorcycle USB Charger cable, Quad Lock® 12V to USB Smart Adaptor cable, Quad Lock® USB Weatherproof Wireless Charging Head

What's Included

CONCEALED
1 x Quad Lock® Concealed Small Base with cover
1 x Quad Lock® 10mm Spacer
1 x M5 x 30 Countersunk hex socket screw (for connecting Spacer to Lever Head or Quad Lock 360™ Arms)
1 x M5 x 45 Countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)

CONCEALED THROUGH CABLE
1 x Quad Lock® Concealed Through Cable Small Base with cover
1 x Quad Lock® 10mm Spacer
1 x M5 x 30 Countersunk hex socket screw (for connecting Spacer to Lever Head or Quad Lock 360™ Arms)
1 x M5 x 45 Countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)
PLEASE NOTE:
Mounting screws not included
